git 大家都比较熟悉,下面来简单说说git flow。通过几个简单的使用,来比较一下git flow的方便之处。为了演示方便,我现在在远程新建一个代码仓库,名字叫做GitflowDemo。

要使用 git flow,我们的先进行git flow的安装

# 安装

  • mac

    # Homebrew
    $ brew install git-flow-avh

    # Macports
    $ port install git-flow-avh

  • Linux

    $ apt-get install git-flow

  • Windows

    $ wget -q -O - --no-check-certificate https://raw.github.com/petervanderdoes/gitflow-avh/develop/contrib/gitflow-installer.sh install stable | bash


我们以mac Homebrew为例进行安装。安装完成后,会提示安装成功。因为我已经安装过,所以提示已经安装完成。

安装完成后,我们进行git flow的初始化。

接下来将远程GitflowDemo仓库克隆到本地,并进入GitflowDemo目录。

# 初始化

git flow init

执行完后,会出现一些命名提示,如图,一般使用默认就好。

到此,git flow的安装以及初始化已经完成。下面来简单说说如何使用它。

# 开发新功能

需求: 新建一个test.txt,并添加内容

# 使用 git flow

$ git flow feature start my-feature
Switched to a new branch 'feature/my-feature'

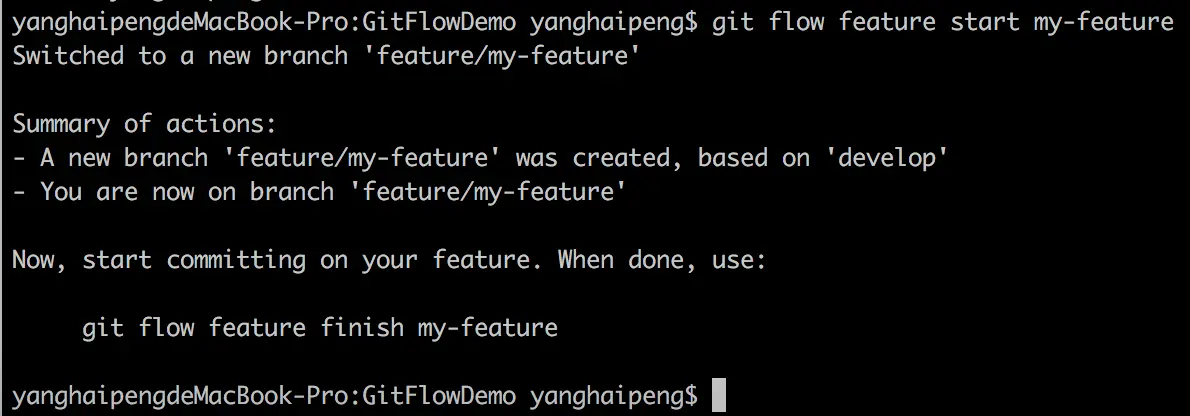

结果如下 git flow start

根据图中的提示,我们知道一个新的分支'feature/my-feature'基于'develop'分支创建好了,并且目前我们所在的分支为'feature/my-feature'

$ git add test.txt
$ git commit -m 'create test.txt'
1 file changed, 1 insertion(+)
create mode 100644 test.txt

我们来验证一下是不是完成了feature分支的开发。

$ git status
On branch feature/my-feature
nothing to commit, working tree clean

好,完成了。下一步:

$ git flow feature finish my-feature
Switched to branch 'develop'
Updating bde3a64..e783fdf
Fast-forward
 test.txt | 1 +
 1 file changed, 1 insertion(+)
 create mode 100644 test.txt
Deleted branch feature/my-feature (was e783fdf).

Summary of actions:
- The feature branch 'feature/my-feature' was merged into 'develop'
- Feature branch 'feature/my-feature' has been locally deleted
- You are now on branch 'develop'

根据提示,我们看到了git flow feature finish my-feature这条语句的作用。

  1. feature/my-feature 分支被merge到了develop分支
  2. 本地feature/my-feature分支被删除。我们现在处于develop分支

来,我们验证下

$ git branch
* develop
  master

发现确实处于develop分支。

# 不适用 git flow

那么如果不适用git flow我们会怎么做呢?

  1. 新建一个分支

    $ git checkout -b my-feature develop

  2. 当开发完成后,合并分支

    $ git merge --no-ff my-feature
    Already up-to-date

  3. 删除本地my-feature分支

    $ git branch -d my-feature

  4. 提交更改到远程 develop分支

    $ git push oriing develop


比较两种方式就会发现,git flow方便了分支的管理,使用上更为简单。

# 发布

需求: 新建readMe.txt并加入版本号与日期。

# 使用 git flow

一、新建一个分支
